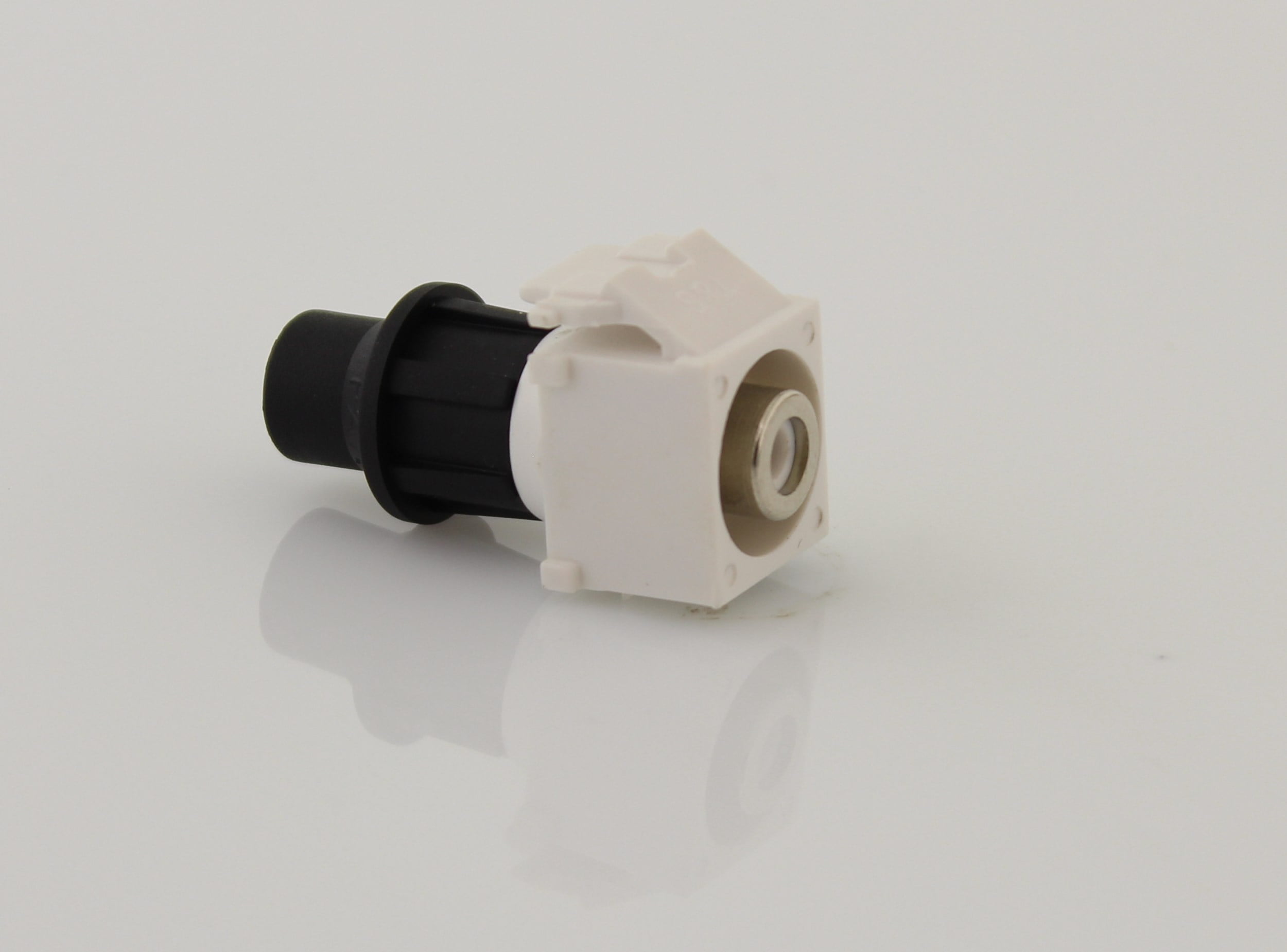

Keystone Module – RCA fem. white

Type: single

Connector: female RCA (JEITA RC-5231)

Impedence: 75 Ohm

Material: white ABS

Unit weight: 9.7 g

Package: 20 pc.

Certifications: CE – RoHS



SKU: UKB/C

Description

Terminal Keystone module for UNICO system with RCA female user connector.

Equipped with 1 black CaP for connection to the system with coaxial cables with a diameter of between 2 and 7 mm.

Bandwidth 0 – 2400 MHz, with DC passage for remote power supply and / or decoder control.

Signal loss: 0.08 dB @ 1000 MHz

Class A + shielding.

Compliant with EN 50083-4 and CEI 100-7 standards.

Convertible into through outlet via divider or shunt for plug-in socket.

Banda passante 0 – 2400 MHz, con passaggio c.c. per tele-alimentazione e/o controllo decoder.

Perdita al passaggio: 0,08 dB @ 1000 MHz.

Schermatura in Classe A+.

Conforme alle norme EN 50083-4 e CEI 100-7.



Trasformabile in presa passante tramite partitore o derivatore per presa ad innesto.
