Type: singolo
Connector: female RCA (JEITA RC-5231)
Impedence: 75 Ohm
Material: ivory ABS
Unit weight: 9.7 g
Package: 20 pc.
Certifications: CE – RoHS
Type: singolo
Connector: female RCA (JEITA RC-5231)
Impedence: 75 Ohm
Material: ivory ABS
Unit weight: 9.7 g
Package: 20 pc.
Certifications: CE – RoHS

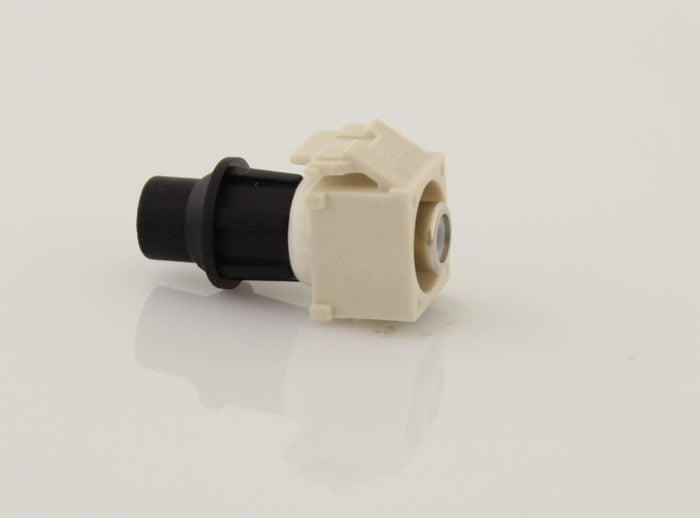

Terminal Keystone module for UNICO system with RCA female user connector.
Equipped with 1 black CaP for connection to the system with coaxial cables with a diameter of between 2 and 7 mm.
Bandwidth 0 – 2400 MHz, with DC passage for remote power supply and / or decoder control.
Signal loss: 0.08 dB @ 1000 MHz
Class A + shielding.
Compliant with EN 50083-4 and CEI 100-7 standards.
Convertible into through outlet via divider or shunt for plug-in socket.
