Future-proof with Plug & Play Multi-Service System®
With the Plug & Play Multiservice System® designed by FAIT, both new and existing housing complexes will be future-proofed as all condominium services will take advantage of the ultra-speed and reliability of fibre optics.
Why choose Plug & Play Multiservice System®?
Easy for every installer
Thanks to the Plug & Play Multiservice System, the world of fiber optics opens its doors to every installer, even those not specialised in this field.
Highest quality
Together with their ease of installation, all components of the Plug & Play Multiservice System are rigorously tested and certified.
Goodbye specific tools
The Plug & Play Multiservice Installation exploits the advantages of Easy Fiber, the innovative preconnected patch cord that allows fiber to be brought into homes without special equipment.
Detailed design, simplified installation, extraordinary results
The optical fiber Multiservice System is an installation capable of managing all universal services to the users residing in a building, such as ultra-wideband connectivity with data and voice services, centralised terrestrial and satellite TV, video door entry, video surveillance and many others.
The fundamental elements that make up the Multiservice Facility are:
- Star Centre of Optical Building Services (CSOE)
- 4 fiber Easy Fiber cable for apartments
- 8 fiber Easy Fiber riser cable
- Head terminal
CSOE, the core of the Multiservice System
The Star Centre of Optical Building Services is the point where the optical fibers that connect the building units for the various services are connected.
It is also the building’s flexibility point, where any service operator (telecommunications, television, etc.) can access these fiber optic connections.
It is realised by the superposition of several drawers to carry out the distribution of all signals to the apartments.
No invasive intervention in building units
No more splicing to bring fiber into apartments thanks to Easy Fiber
Easy Fiber, the multi-fiber cable for the apartments (from at least 4 single-mode fibers) connects the STOA in the apartment to the CSOE (Star Centre of Optical Building Services) in the technical room.
The Easy Fiber cable has a diameter reduced to the size of the ferrule (2.5 mm) and can be easily pulled into the ducts. The connectors will be completed easily and in a matter of seconds once in place.
An example of using the 4 fibres of the flat cable:
- 1 fiber is dedicated to terrestrial and satellite TV service (the user can choose the desired orbital position from those available in the installation);
- 2 fibers reserved for the FTTH service (1 fiber for technical and evolutionary redundancy)
- 1 fiber for additional services (video door entry, video surveillance, meter reading, electric vehicle recharge control, etc.).
You choose where to install the optical outlet

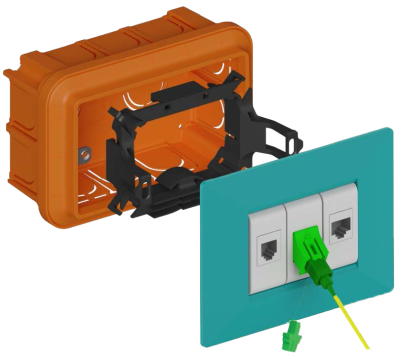

Thanks to the innovative Easy Link and Easy Key outlets, it will be the end user who chooses where in his home the optical outlet will be installed.
The technician will install the optical outlet so that the FTTH modem is placed close to the main TV location (Smart TV, TV decoder, gaming console, etc.) instead of leaving it near the entrance as is usually the case with current optical outlet installations.
There will be no need to do any work on the walls to install Easy Link and Easy Key, and the result will be effective and elegant.
Condominium TV and optical cable service
The head terminal installed in the attic includes the Optical Riser Termination Box connected to the CSOE in the technical room via the 8-fiber Easy Fiber optical riser cable.
Use of the 8 fibers of the riser cable:
- 2 reserved for 5G backhaul service;
- 1 dedicated to the condominium terrestrial and satellite TV service;
- The remaining 5 fibers are dedicated to the condominium terrestrial and satellite TV service (each fiber lit can serve up to 32 apartments).
The ‘head of the system‘ is built in the traditional way (coaxial). The TV signals are received by the antennas and amplified and equalised by a switchboard with programmable filters.
